Servo PLC Base Filling Machine(Semi & Automatic Multi Head)

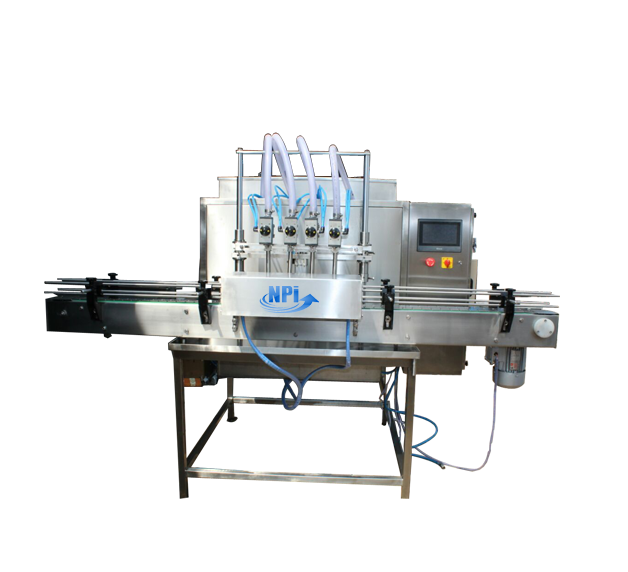

Automatic 4 Head Viscous
Filling Machine Model: NPVFL- 4HEAD
| MODEL | VFL-4 |
|---|---|
| Output/Hour* | 20-24 BPM – 1000ml (depend on fill Size. & Neck size) |
| Number of Nozzle | 4 Nos. |
| Fill Size*** | 200 ml to 5000 ml(with the help of change parts) |
| Filling Nozzle Size | 25 mm with outside open (30 Degree) |
| Valve Body | Special Viscous Type. |
| Tank Capacity | 100 Liters |
| Working Pressure | 6 Kg/Sq.Cm. |
| Working CFM | 20 CFM |
| Electric Specification** | Servo Motor 750 WATT – 4 NOS. Conveyor Motor : 0.5 hp |
| Machine Dimensions** | 2135 mm (L) x 700 mm (W) x 1400 mm (H) |
| Case Dimensions | 2350 mm (L) x 1000 mm (W) x 1600 mm (H) |
| Net Weight | 650 Kg. Approx |
| Gross Weight | 800 Kg. Apporx |
