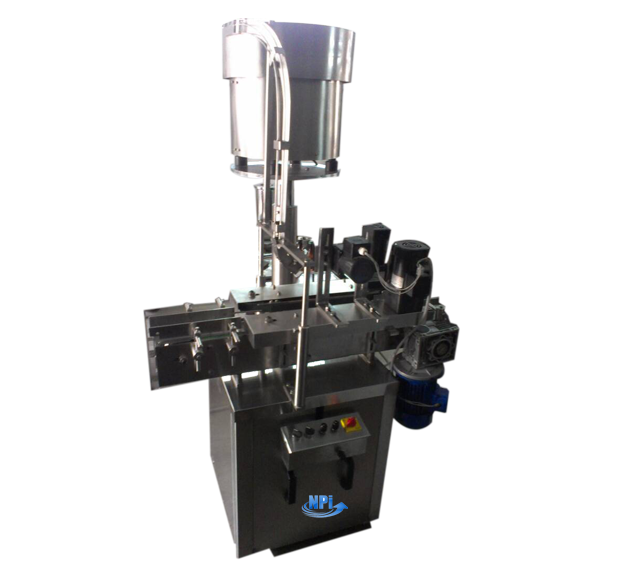

Measuring Placement High Speed Machine (250 BPM)

Utility Requirement
Electrical supply	: Singel Phase + Neutral + Earthing
Electrical load	: 1.5 KW

Technical Specification
MODEL		AMCPP-200
Output/Hour*		3600 to 12000 bottles
Direction of Movement		Left to Right
Electrical Specification**	Main Motor	0.5 HP / Singel Phase / 50 Hz
	Top Pressing Motor	0.25 Gear Motor 1 no.
	Pressing Motor	0.25 Gear Motor 2 nos.
	Cap Feeding Bowl	5 Amp coil
Height of Conveyor**		840 mm to 880 mm
Machine Dimensions**		1500 mm (L) x 500 mm (W) x 1800 (H)

Input Specification
Dozing Cup Specification	Diameter**	19 mm to 38 mm***
Dozing Cup Specification	Height **	19 mm to 23 mm***
Dozing Cup Specification	Round Shape	Ø 22 mm to Ø 80 mm * Respectively height 58 mm to 240 mm* (Height option for other bottle height available)

* Depends on bottle size, cap size and type of cap.

** We can supply as per customer requirements.

SAILENT FEATURES

No Bottle No Cap Arrangement
SS elegantly matt finished body CLADED BY S.S. 304.
synchronizes conveyor Single motor.
Adjustable height of conveyor belt, to align with other machine of the line.
FOR STORAGE OF MORE CAPS A DESIGN HOOPER IS PLACED
low power consumptions Low noise level,.
for low friction wear surface, smooth and noiseless conveying Self lubricating SYSTEM IS PROVIDED
Conveyor, & Cup bowl Synchronized BY A/C drives.

Pharmaceuticals

Food Beverages

Edible Oil / Lube oil

Agro Chemicals
