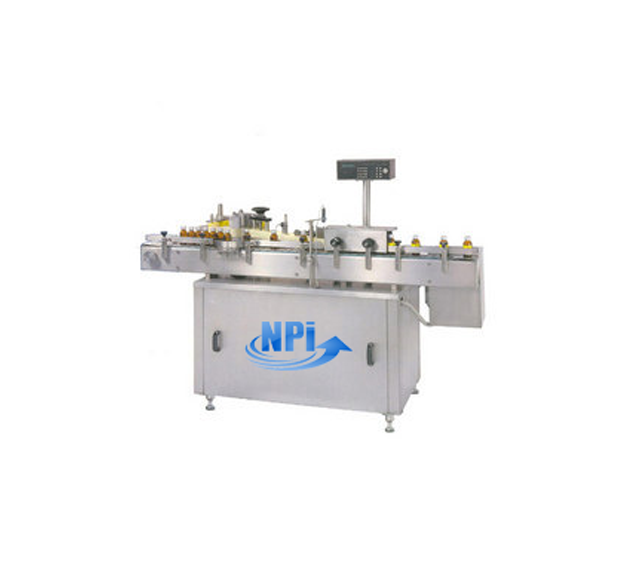

Self Adhesive Vertical Labeling Machine
| MODEL |
NPASAL |
| OUTPUT / HOUR* |
1000 TO 3000 |
| LABELLING DIRECTION |
LEFT TO RIGHT |
| OUTPUT / MINUTE |
60 TO 200 ROUND BOTTLES ( DEPENDING ON THE SIZE OF THE BOTTLE OR THE LABEL LENGTH ) |
| CONSTRUCTION |
TOP STAINLESS STEEL MATT FINISH & M.S. ANGLE STRUCTURE IS COVERED WITH SS 304 SHEET |
| OVERALL DIMENSIONS |
1950 MM (L) 950 MM (W) ADJUSTABLE HEIGHT 800 TO 850 |
| LABEL ROIL DIA |
MAXIMUM 400 MM |
| LABEL LENGHT |
20 MM TO 210 MM |
| MAXIMUM LABEL STOCK [ ROLL DIA ] |
400 MM |
| ELETRIC SUPPLY |
CONVEYOR MOTOR |
0.50 HP / 415 VOLTS / 50 HZ |
| PRESSING DEVICE MOTOR |
0.25 HP / 220 VOLTS / 50 HZ |
| STICKER ROLL STEPPER MOTOR |
6 V DC |
SAILENT FEATURES
- GMP DESIGN WITH COMPLETE SS STRUCTURE
- FULLY SECURITY PACKAGE INCLUDE COUNTER
- PRODUCT DATA STORAGE FACILITY
- NO CHANGE PART REQUIRED.
- VERY LESS DOWN TIME FOR CHANGE OVER.
- COMPACT DESIGN OF APPLICATOR MADE FROM ALUMINUM.
