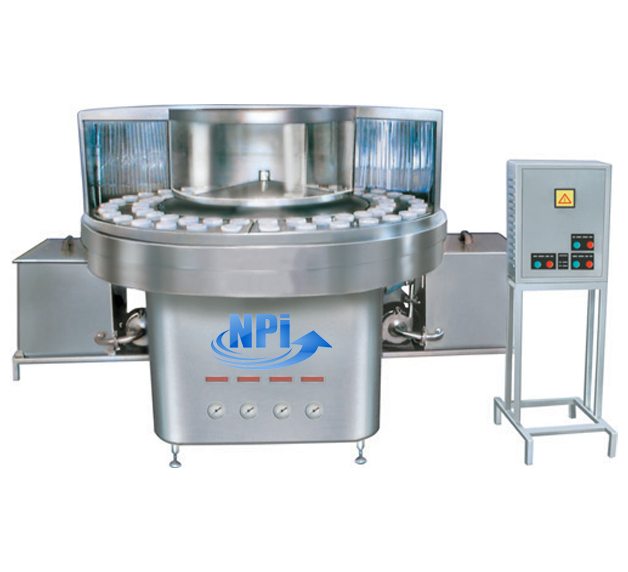

Rotary Bottle Washing Machine (NPRWM)
TECHNICAL SPECIFICATION
| MODEL |
NPRWM - 64 |
NPRWM – 96 |
| OUTPUT / HOUR * |
3000 - 4000 |
4000 - 7000 |
| NO. OF BOTTLE HOLDER |
64 |
96 |
| ELETRIC LOAD |
MAIN MOTOR |
0.5 HP / 415 VOLTS / 50 HZ |
| PUMP TWO NOS. |
1 HP / 415 VOLTS / 50 HZ X 2 NOS. |
| ELETRICAL HEATER |
3 KW |
| WASH CYCLE |
4 INNER + 1 OUTER WASH |
| Overall dimension |
1550 mm(L) x 1700mm(W) x1300(H) approx |
UTILITY REQUIREMENT
| Electric supply |
: 3phase + neutral + earthing |
| Electric load |
: 2Kw |
| Heater |
: 3Kw |
| Air pressure |
: minimum : 5 kg /cm2 |
| Qty |
: 5 C.F.M |
SAILENT FEATURES
- Geneva mechanism
- ALL CONTACT PARTS ARE MADE OF S.S. 316
- STATIONERY NOZZLE ELIMINATE CONTAMINATION OF WATER CYCLE
- FOR LIGHT WEIGHT BOTTLE guide system IS USED
- S.S. Elegantly matt finish body
- 70 lts capacity water tank (two nos )
- DUE TO SPRAYING OF WATER SEPARATE PANEL IS USED TO AVOID ANY SHORT CIRCUIT
- AS PER REQUIREMENT WASHING SYSTEM CAN BE ADJUSTED
- Solenoids valve to avoid leakage
