Automatic Powder Filling Machine

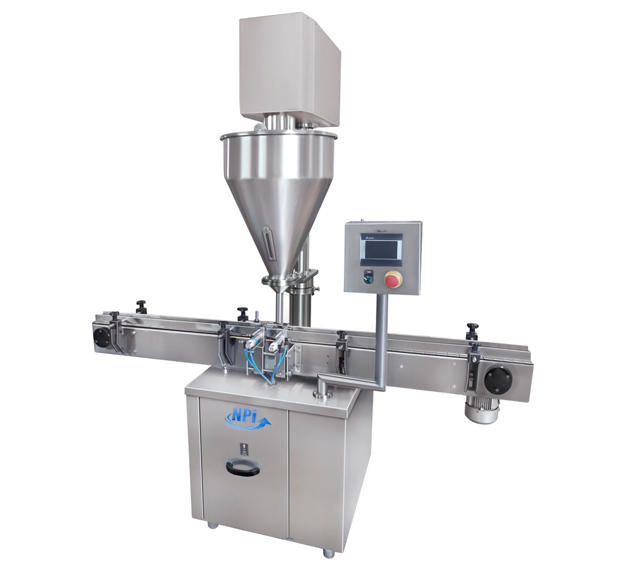

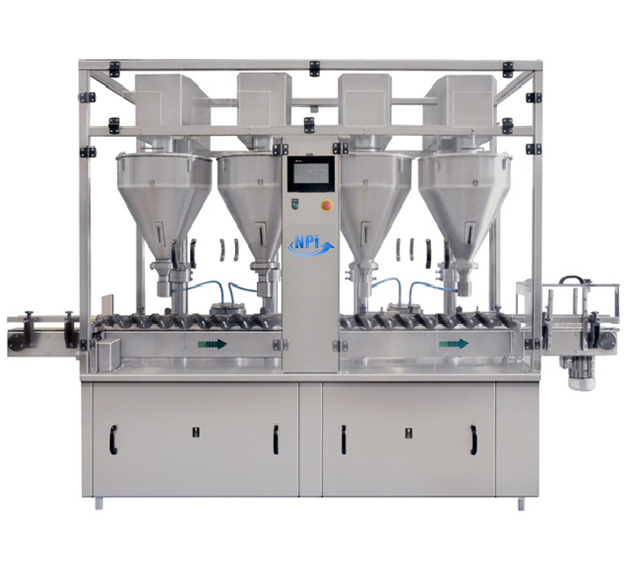

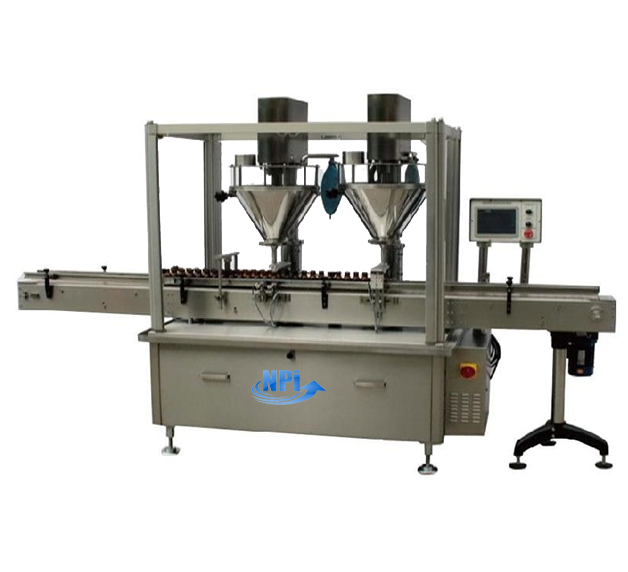

AUTOMATIC SINGLE / DOUBLE / FOUR HEAD AUGUR TYPE POWDER FILLING MACHINE
| MODEL | NPAPFCS – 40 | NPAPFCS – 70 |
|---|---|---|
| OUTPUT (BPM) | 25 – 30 [ DEPENDING UPON MATERIAL PROPERTY ] |
50 – 60 [ DEPENDING UPON MATERIAL PROPERTY ] |
| HOPPER CAPACITY | 25 LTR | |
| ACCURACY | ± 1 % | |
| POWER | 220 / 440 V , 50 HZ [FOUR WIRE ] | |
| ELECTRIC MOTOR | 1.5 HP , 220 / 415 V , 50 HZ [FOUR WIRE ] | |
| CONVEYOR HEIGHT | 850 MM TO 950 MM ADJUSTIBLE | |
| BOTTLE SIZE | Ø 22 MM TO Ø 100 MM , MAXIMUM HEIGHT 210 MM | |
| FILLING SIZE | 5 GM TO 1 KG [ WITH THE HELP OF REQUIRED CHANGE PART ] | |
| CAP SIZE | 19 MM TO 80 MM MAXIMUM, WITH THE HELP OF CHANGE PART OVERALL DIMENSION. | |
SAILENT FEATURES
- ALL THE CONTACT PARTS ARE S.S. 316
- AJUSTABLE HEIGHT OF MACHINE CONVEYOR BELT.
- DOSING SYSTEM SERVO BASE.
- LOW POWER CONSUMPTION LOW NOISE LEVEL.
- ± 2 % ACCURACY IN SINGLE DOSE .
